TNC Connector Male-Female 0-3GHz 50Ohm 90V/250V for Coaxial Cable RF Antenna Feeder Surge and Lightning Protection

Inquiry
  • Overview
  • Inquiry
  • Related Products

Telebahn’s TNC Connector Male-Female 0-3GHz 50Ohm 90V/250V for Coaxial Cable RF Antenna Feeder Surge and Lightning Protection is the perfect product for anyone who’s been wanting to protect their coaxial cable from sudden surges. This connector can handle power surges up to 90V and 250V, making it an ideal option in high-power RF antenna systems.



Designed for everyone’s convenience, this will surely work with an array of coaxial cables, which will make it flexible to many set up. This product was made with durable materials that will allow you to focus without the fear of any accident.



The TNC Connector Male-Female 0-3GHz 50Ohm 90V/250V for Coaxial Cable RF Antenna Feeder Surge and Lightning Protection comes with a wrist watch that will assist in providing security against surge. It also has a built-in specialized components which will help to prevent overvoltage. This, alongside its construction is weather-resistant you need to use this connector confidently in outside settings also.



One of the key features of this product is its capability to accommodate numerous frequencies. With a frequency that ranges from 0-3GHz, this connector will serve best in high-frequency setups, including those that are used by wi-fi and cellular technologies. The 50 Ohm impedance will ensure that the signal will remain stable- perfect for applications where stability alert is vital.



The TNC Connector Male-Female 0-3GHz 50Ohm 90V/250V for Coaxial Cable RF Antenna Feeder Surge and Lightning Protection is an excellent product for anyone who wants to ensure the safety and stability of their coaxial cable. With its high-quality components, protective capabilities, and wide compatibility, this connector is a great addition to any high-power antenna setup. You can trust Telebahn to provide you with products of the highest quality so, what are you waiting for? Order yours now and experience the safeness you deserve!

Product Description



Summary

For installation at LPZ 0B-1 or higher, protecting 50Ohm coaxial cable system, applied in coaxial system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.

Hightlight Features

• With exchangeable integrated gas discharge tube.

• High discharge capacity, low voltage protection level.

 Wide frequency range, high performance transmission.

• Metallic housing TNC (M-F) connection, easy for installation.

Application

BS G TNC is applied in various feed system, and so on.

Application environment

•  Temperature: -40°C ~ +80°C

•  Relative humidity:  ≤ 95% (25°C)

Technical data

Type

BS G TNC (M-F)

(Replacement gas discharge tube)

Rated voltage (max. continuous d.c. voltage) [Uc]

90V /  250V

Nominal current [ I]

3.5A

Lightning impulse current (10/350)  [ Iimp ]

1kA

Nominal discharge current (8/20)  [ In ]

10kA

Max. nominal discharge current (8/20)  [ Imax ]

20kA

Voltage protection level at In  [ Up ]

≤ 700V

Transmission frequency [ fG ]

0-3GHz

Max. output power  [ P ]

500W

Insertion loss [ aE ]

≤ 0.2dB

Return loss [ aR ]

≥ 18dB

Characteristic impedance  [ Z ]

50Ohm

Connection input/output

TNC (M-F) socket/plug

Operating temperature range [ Tu ]

-40°C...+80°C

Earthing via

Outgoing connecting port

Dimension

Ø20 54 (mm)

Test standards

IEC 61643-21; EN 61643-21; GB 18802.21

Certification

CE (LVD/EMC), Rohs

Ordering information

Type

BG TNC

Art.-No.

680 013

Packing unit

1pc(s)

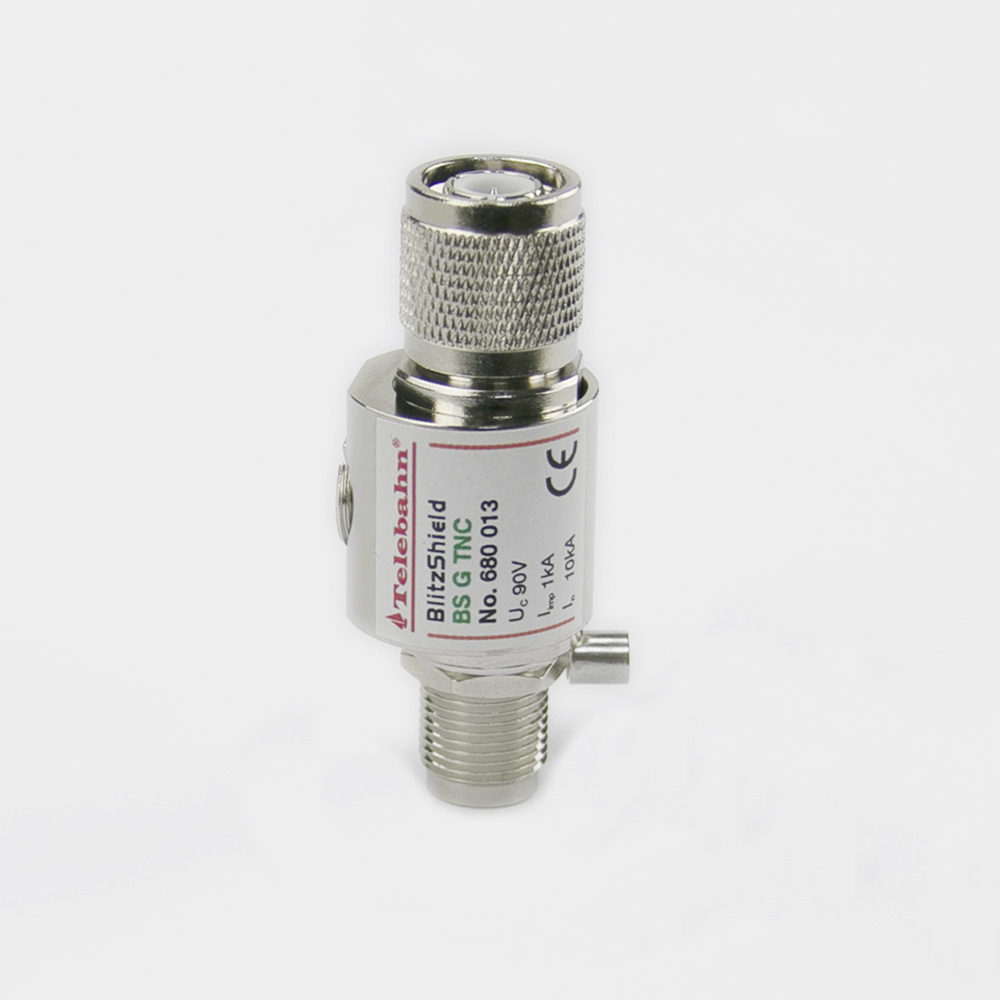

1 Image_BS G TNC.jpg

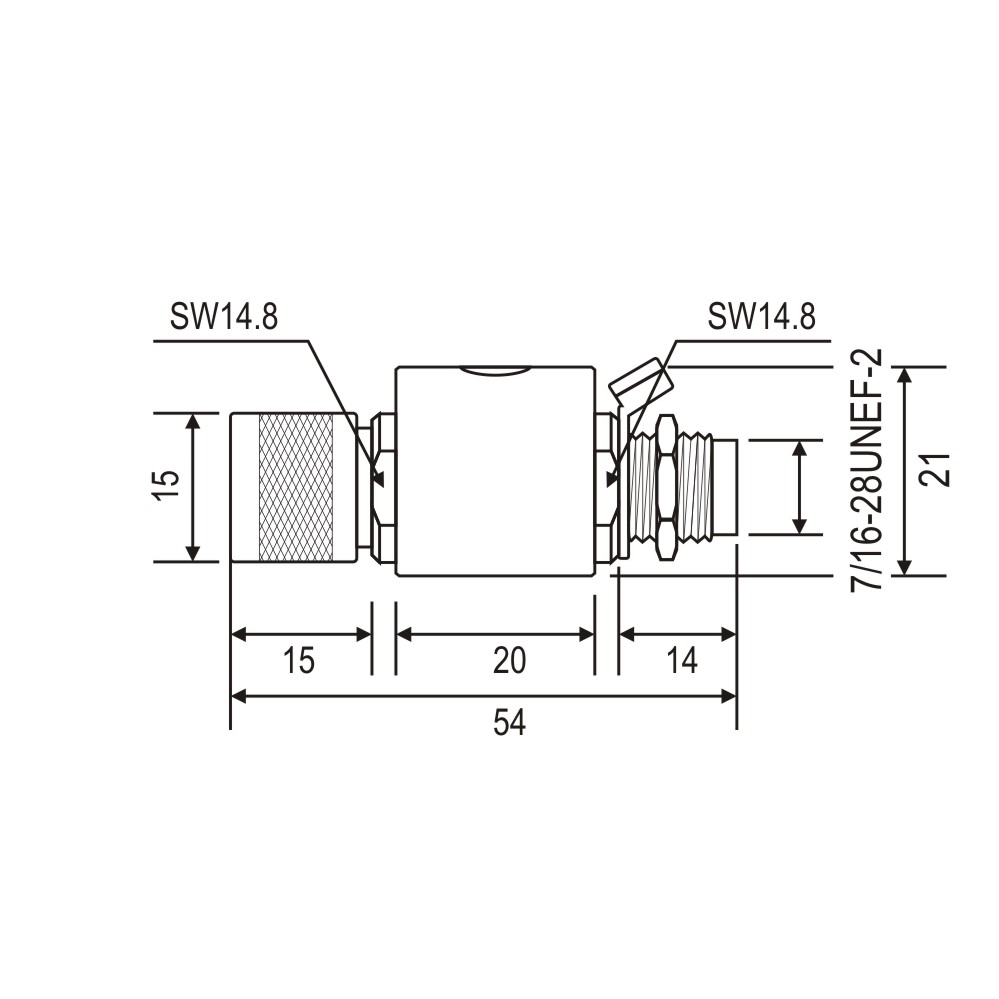

Dimension_BS G TNC.jpg

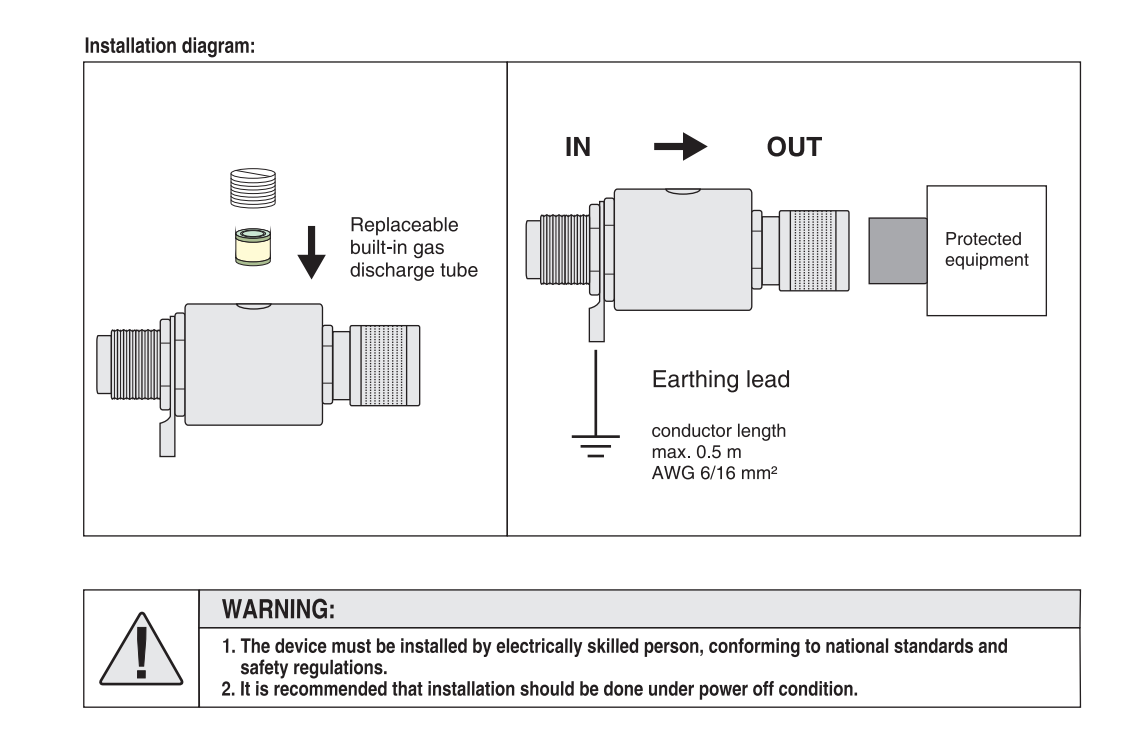

Installation Diagram
