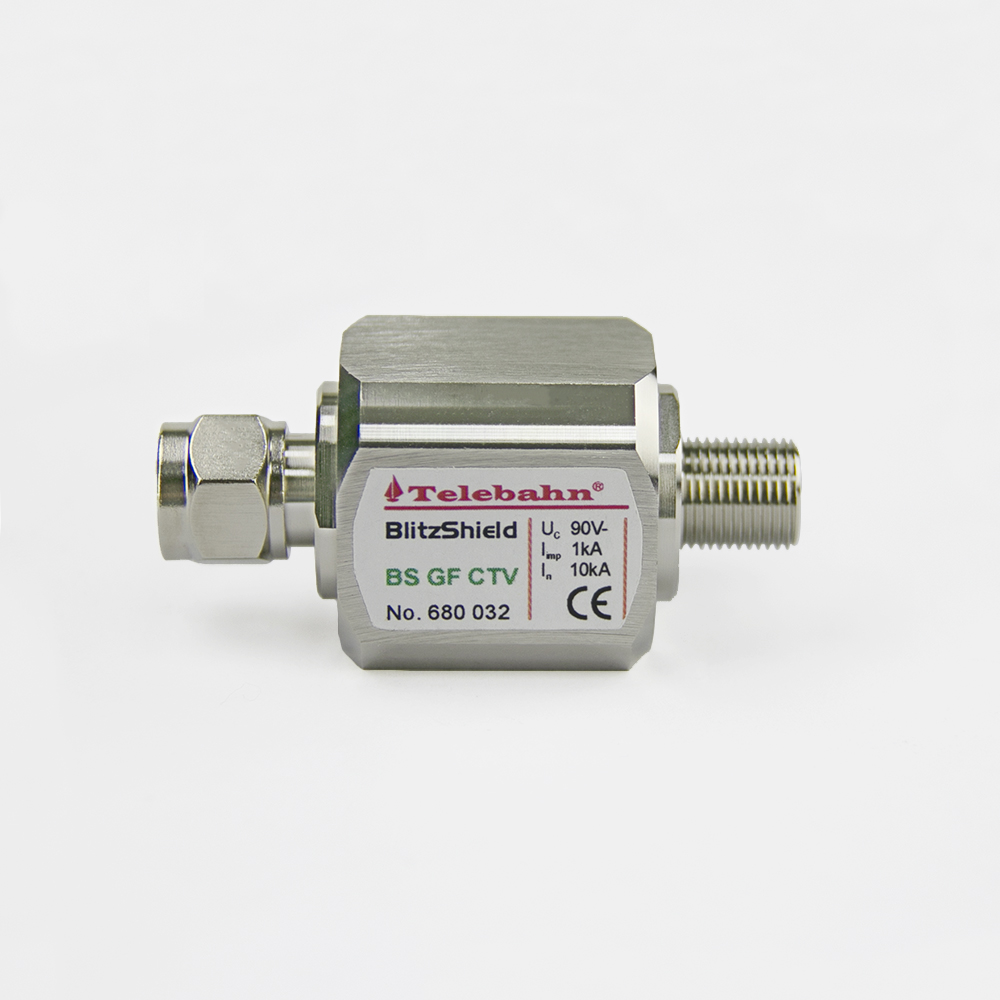

If you are looking for a Coaxial that is Cable that is dependable Protector the antenna system, take a good look at the Telebahn Coaxial Cable Surge Protector F Connector 0-3GHz 75Ohm for Antenna System SPDs. This rise protector had been made to protect your gear that is electronic from surges which will happen during a rise that is electric lightning attack.
This increase protector is ideal for any antenna system which will require an F connector insurance coverage business a impedance that is 75Ohm. It operates in a regularity choice of 0-3GHz, causing the appropriate a number this is actually wide of.
The F Connector 0-3GHz 75Ohm SPD is made of top-notch materials and it's built to withstand environment this is really harsh. It's fashioned with a housing that is tough can withstand conditions being extreme it truly is resistant to UV rays and corrosion. What this means is the rise protector shall continue to perform at its most readily useful even yet in harsh conditions being outside.
A task that is not hard install and which can be linked right to your antenna system. It includes a design this is certainly means that are undoubtedly compact will not occupy method area that is simply too much might be effortlessly conserved in your toolbox.
One of several standout features is its capacity to offer security this is actually voltage that is optimum. Its rise this is actually level that is advanced shows that your gear that is electronic is from power surges and lightning hits.
This is actually safety that is superior also in a position to boost the effectiveness linked to the antenna system alongside its rise. It decreases loss that is alert assists to optimize energy that is alert making certain you can find crystal reception this is really apparent.
The Telebahn Coaxial Cable Surge Protector F Connector 0-3GHz 75Ohm for Antenna System SPDs is just a must-have for anyone who wants to protect their gear that is electronic therefore the performance of this antenna system. Its construction that is high-quality rise security technology, and simplicity of installation help it become an option that is great both experts and DIY enthusiasts.
Summary
For installation at LPZ 0B-1 or higher, protecting 75Ohm satellite / TV coaxial cable system, applied in coaxial system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.
Highlight Features

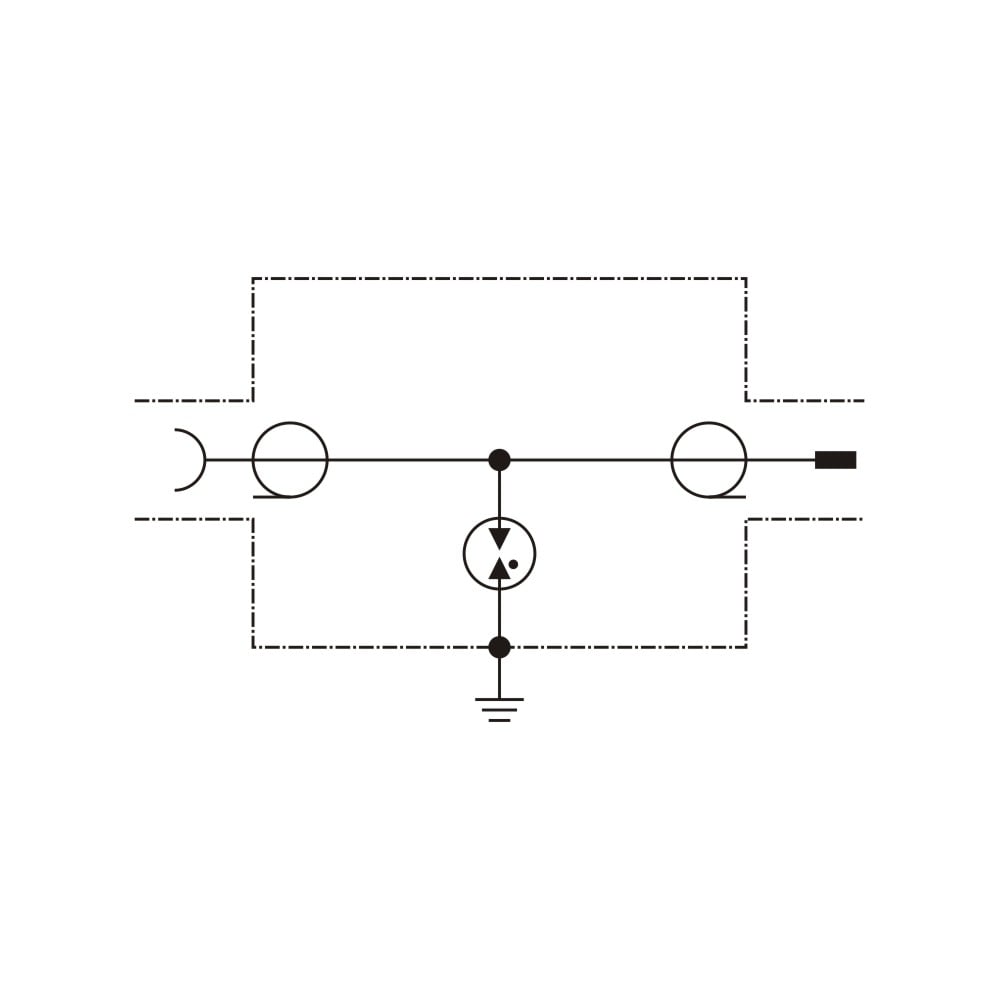

• With exchangeable integrated gas discharge tube.
• High discharge capacity, low voltage protection level.
• Wide frequency range, high performance transmission.

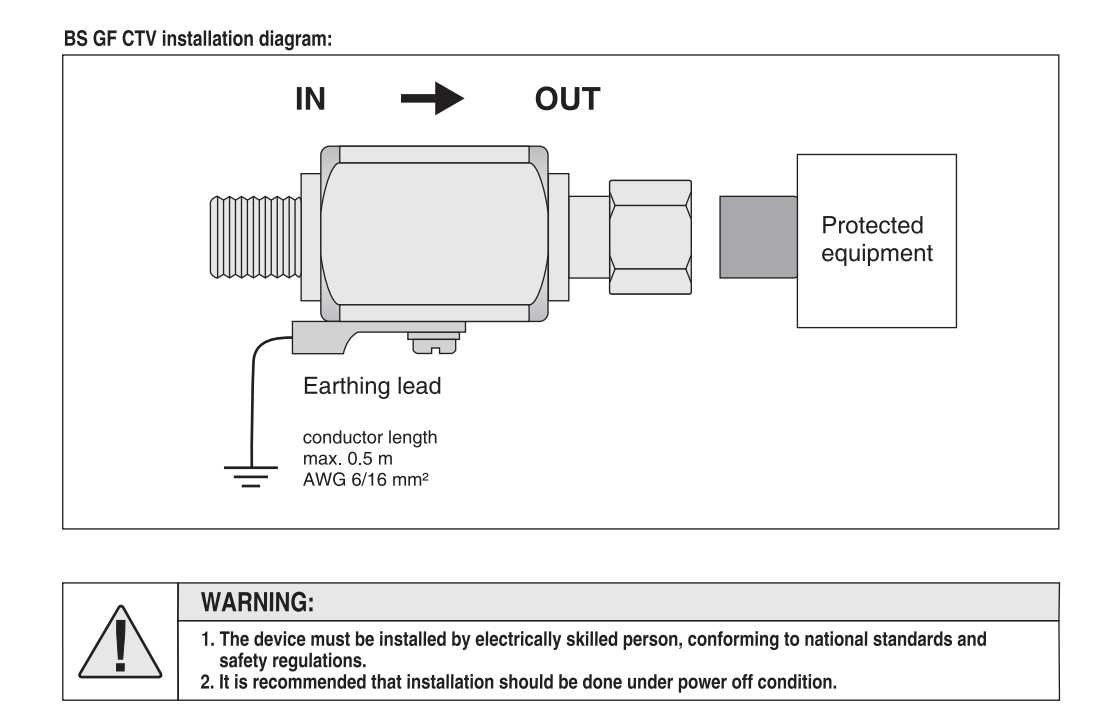

• Metallic housing F (M-F) connection, easy for installation.
Application
BS GF CTV is applied in various feed system, and so on.
Application environment
• Temperature: -40°C ~ +80°C
• Relative humidity: ≤ 95% (25°C)
Technical data
Type | BS GF CTV (M-F) (Replacement gas discharge tube) |
Rated voltage (max. continuous d.c. voltage) [Uc] | 60V |
Nominal current [ IL ] | 2A |
Lightning impulse current (10/350) [ Iimp ] | 2.5kA |
Nominal discharge current (8/20) [ In ] | 10kA |
Max. nominal discharge current (8/20) [ Imax ] | 20kA |
Voltage protection level at In [ Up ] | ≤ 600V |
Transmission frequency [ fG ] | 0-3GHz |
Max. output power [ P ] | 50W |
Insertion loss [ aE ] | ≤ 0.5dB |
Return loss [ aR ] | ≥ 18dB |
Characteristic impedance [ Z ] | 75Ohm |
Connection input/output | F (M-F) socket/plug |
Operating temperature range [ Tu ] | -40°C...+80°C |
Earthing via | Outgoing connecting port |
Dimension | 25 x 25 x 53 (mm) |
Test standards | IEC 61643-21; EN 61643-21; GB 18802.21 |
Certification | CE (LVD/EMC), Rohs |
Ordering information | |
Type | BS GF CTV |
Art.-No. | 680 032 |
Packing unit | 1pc(s) |
Q1: Are you a factory or a trade company?
A: We are the factory of surge protective devices and we have been doing this for over 30 years.
Q2: Where are your products distributed?
A: Our products are distributed all over the world, Main market are Europe, North America, the United Arab Emirates, Africa and so on.
Q3: Can I have a sample?
A: Yes, but according to our company's policy, we provided free samples, while you should pay the freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.
Q4: Which port is the nearest from you?
A: Guangzhou port or Shenzhen Port or Hong Kong port or Zhuhai Port.
Q5: What's your lead time?
A: Sample lead time: 3~5 working days.
Mass production: usually 10~30days.
For big orders, honestly, it depends on the order quantity and designs.
Q6: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.
Q7: Can you do the design for us?
A: Yes, we have a professional team having rich experience in molding design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork. You can pay for the molding fee and own the mold by yourself or we can cooperate on the molding.
Q8: OEM & ODM are accepted or not?
A: OEM&ODM are welcome.
Q9: Who are we?
A: We are based in Guangdong, China, start from 2016, sell to Domestic Market(38.00%), North America(23.00%), Eastern Europe(15.00%), Southeast Asia(8.00%), South America(6.00%), Central America(2.00%), Northern Europe(2.00%), South Asia(2.00%), Africa(00.00%), Eastern Asia(00.00%), Western Europe(00.00%), Southern Europe(00.00%). There are total about 11-50 people in our office.
Q10: How can we guarantee quality?
A: Always a pre-production sample before mass production
Always final Inspection before shipment.
Q11: What can you buy from us?
A: Surge Protective Devices, Lightning Protector.
Q12: Why should you buy from us not from other suppliers?
A: Zhuhai Telehof Electrics Company Limited is a British-owned company, mainly engaged in research, manufacturing and sales of Surge Protective Devices.
