RF Antenna Feeder Thunder Protection UHF Connector 0-3GHz 50Ohm 90V/250V Coaxial Cable Surge Protective Devices is a top-of-the-line product that provides exceptional safety and performance. This surge protective device is designed to protect your coaxial cable from lightning, power surges, and other electrical disturbances.


This works effectively inside the frequency range of 0-3GHz and has now an impedance of 50 Ohms. It ensures sign is smooth and offers maximum security against electromagnetic disturbances.


Constructed of high-quality materials, which enhances its resistance and durability to corrosion. Furthermore, it's made to fulfill industry standards and provides a secure, dependable connection.


Equipped with higher level rise security technology, which supplies protection is dependable harmful electrical surges. The product's 90V/250V power rating enables it to deal with high degrees of current, ensuring protection is very good your electronic equipment.


Very easy to set up, includes clear guidelines, and doesn't need any skill is specialized. You need to use it in harsh outside surroundings as it can certainly withstand climate that is extreme and temperature fluctuations.


An option that is very good anybody seeking to protect their coaxial cable from potential harm caused by electrical surges. It's dependable, efficient, and supported by a brand name is reliable to deliver top-notch items.


Get your hands on Telebahn's RF Antenna Feeder Thunder Protection UHF Connector 0-3GHz 50Ohm 90V/250V Coaxial Cable Surge Protective Devices today and enjoy top-notch performance without worrying about electrical disturbances.



Product Description



Summary

For installation at LPZ 0B-1 or higher, protecting 50 coaxial cable system, applied in coaxial system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.

Highlight Features

With exchangeable integrated gas discharge tube.

•High discharge capacity, low voltage protection level.

Wide frequency range, high performance transmission.

Metallic housing UHF (M-F) connection, easy for installation.

Application

BG UHF is applied in various feed system, and so on.

Application environment

Temperature: -40°C ~ +80°C

Relative humidity:  ≤ 95% (25°C)

Technical data

Type

BS G UHF (M-F)

(Replacement gas discharge tube)

Rated voltage (max. continuous d.c. voltage) [Uc]

90V or  250V

Nominal current [ I]

3.5A

Lightning impulse current (10/350)  [ Iimp ]

1kA

Nominal discharge current (8/20)  [ In ]

10kA

Max. nominal discharge current (8/20)  [ Imax ]

20kA

Voltage protection level at In  [ Up ]

≤ 700V

Transmission frequency [ fG ]

0-3GHz

Max. output power  [ P ]

500W

Insertion loss [ aE ]

≤ 0.2dB

Return loss [ aR ]

≥ 18dB

Characteristic impedance  [ Z ]

50Ohm

Connection input/output

UHF (M-F) socket/plug

Operating temperature range [ Tu ]

-40°C...+80°C

Earthing via

Outgoing connecting port

Dimension

25 x 25 60 (mm)

Test standards

IEC 61643-21; EN 61643-21; GB 18802.21

Certification

CE (LVD/EMC), RoHS

Ordering information

Type

BG UHF

Art.-No.

680 005

Packing unit

1pc(s)

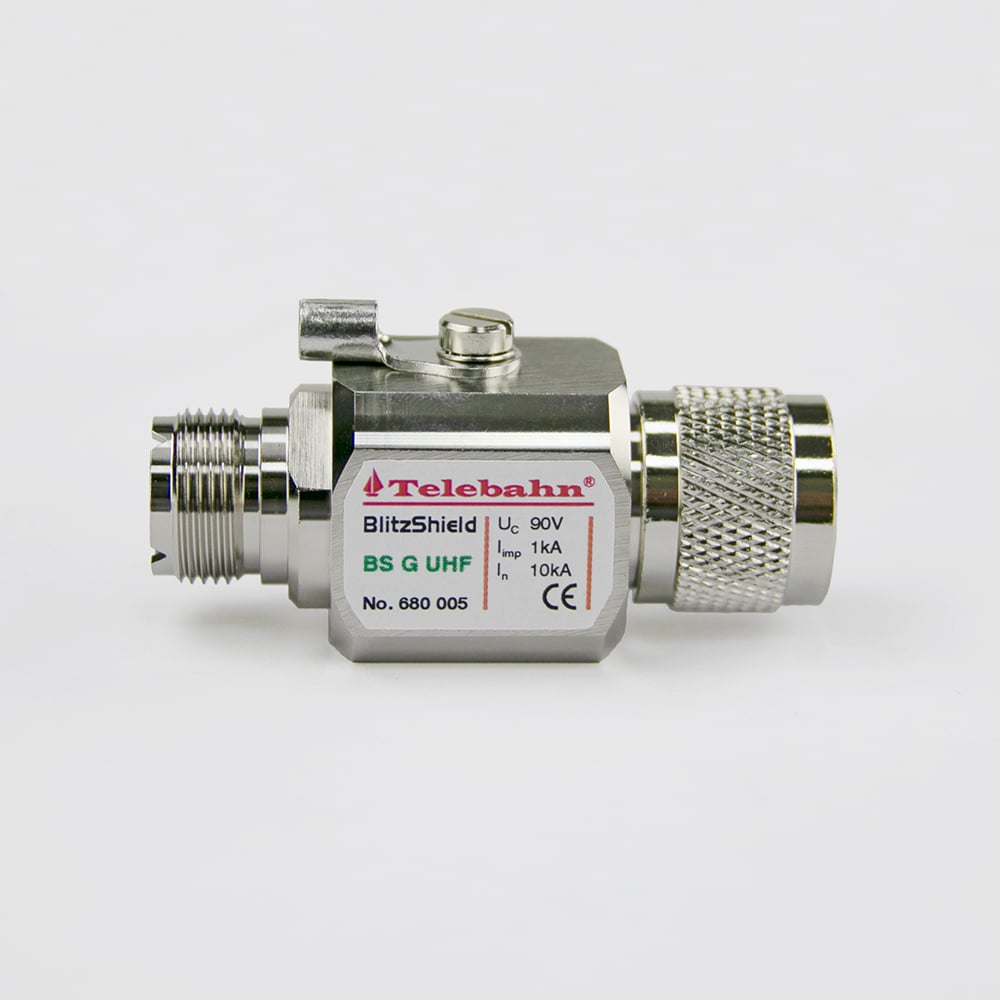

3 Image_BS G UHF.jpg

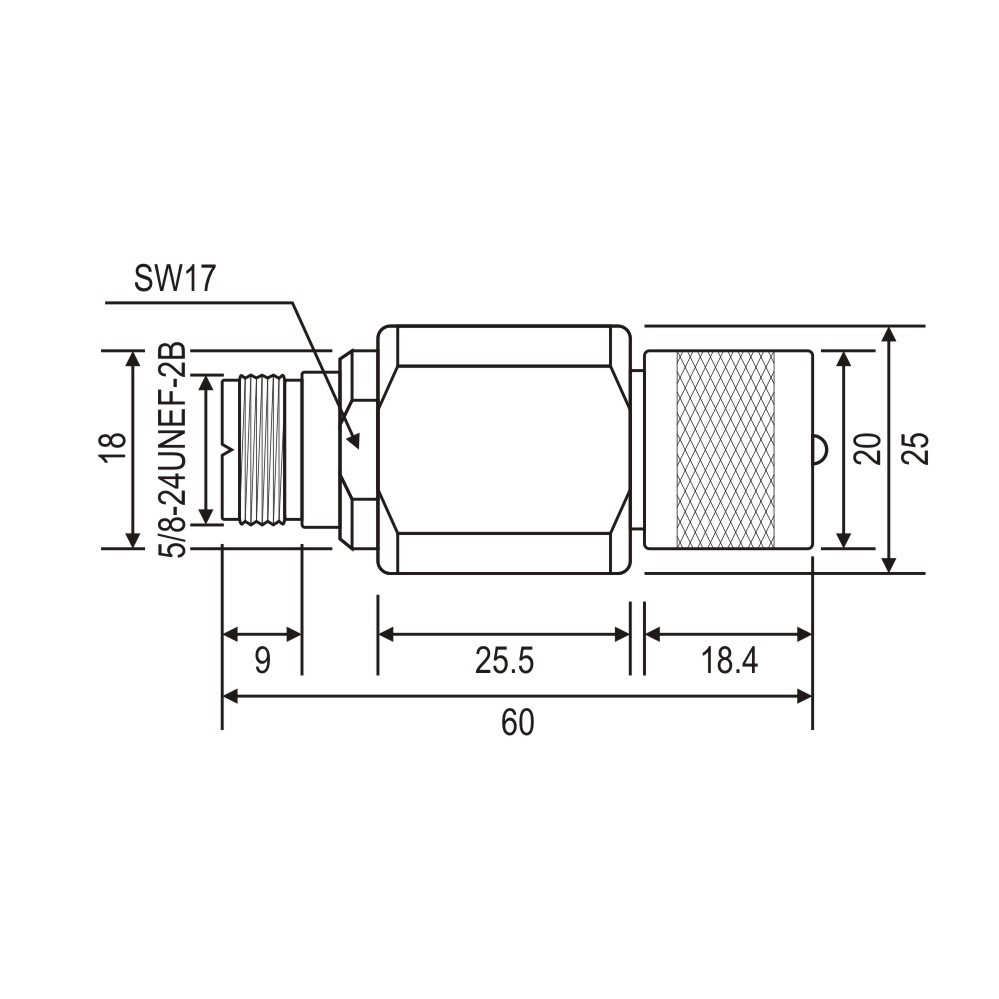

Dimension_BS G UHF.jpg

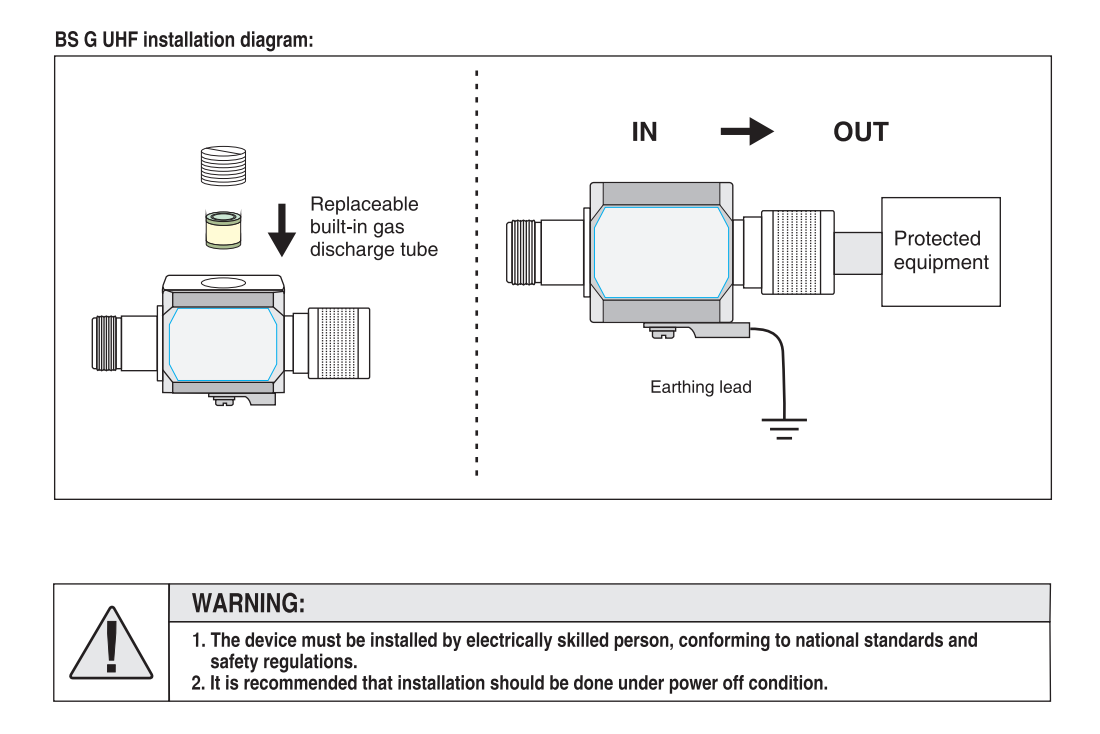

Installation Diagram

 BS G UHF.png
