SPD RF Antenna Coaxial Cable Surge Protectors UHF Connector 0-3GHz 50Ohm 90V/250V Lighting Protector

Inquiry
  • Overview
  • Inquiry
  • Related Products

Telebahn's SPD RF Antenna Coaxial Cable Surge Protectors UHF Connector 0-3GHz 50Ohm 90V/250V Lighting Protector is best choice to ensure the safety and longevity of your electronic devices. Made for use of devices operating from 0-3GHz frequency range, this surge protector is a great option for those who wants to guarantee their devices’ condition.



It comes with a maximum convenience of 50Ohm, protecting your electronic devices from voltage that could cause irreparable damage. The product was made with UHF connectors making it an easy task to install and utilize. Moreover, it was designed to withstand harsh climate conditions since they are made out of materials that assures durability and reliability.



This surge protector was created to be suitable for a range of products making it an ideal choice for a selection of users. The product is very easy to setup and requires minimal effort to maintain, making it a great choice for people who value user-friendly products.



This was made compact to make sure that it won’t occupy much area in your setup that is best for those want to keep their things simple, organised, and clean.



With Telebahn as the one who made this product, rest assured that you’ll get a product of top quality. Telebahn knows the importance of getting reliable products to ensure its safety and that it could last long.



If you want to protect your electronic devices and guarantee their optimal functioning, the Telebahn’s SPD RF Antenna Coaxial Cable Surge Protectors UHF Connector 0-3GHz 50Ohm 90V/250V Lighting Protector is an excellent choice. With its function that features durability and compatibility, you will definitely have what you paid for. Order one today and experience the convenience of using a product that you can trust.




Product Description



Summary

For installation at LPZ 0B-1 or higher, protecting 50 coaxial cable system, applied in coaxial system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.

Hightlight Features

With exchangeable integrated gas discharge tube.

• High discharge capacity, low voltage protection level.

 Wide frequency range, high performance transmission.

Metallic housing UHF (M-F) connection, easy for installation.

Application

BS G UHF is applied in various feed system, and so on.

Application environment

•  Temperature: -40°C ~ +80°C

•  Relative humidity:  ≤ 95% (25°C)

Technical data

Type

BS G UHF (M-F)

(Replacement gas discharge tube)

Rated voltage (max. continuous d.c. voltage) [Uc]

90V or  250V

Nominal current [ IL ]

3.5A

Lightning impulse current (10/350)  [ Iimp ]

1kA

Nominal discharge current (8/20)  [ In ]

10kA

Max. nominal discharge current (8/20)  [ Imax ]

20kA

Voltage protection level at In  [ Up ]

700V

Transmission frequency [ fG ]

0-3GHz

Max. output power  [ P ]

500W

Insertion loss [ aE ]

0.2dB

Return loss [ aR ]

18dB

Characteristic impedance  [ Z ]

50Ohm

Connection input/output

UHF (M-F) socket/plug

Operating temperature range [ Tu ]

-40°C...+80°C

Earthing via

Outgoing connecting port

Dimension

25 x 25 x 60 (mm)

Test standards

IEC 61643-21; EN 61643-21; GB 18802.21

Certification

CE (LVD/EMC), RoHS

Ordering information

Type

BS G UHF

Art.-No.

680 005

Packing unit

1pc(s)

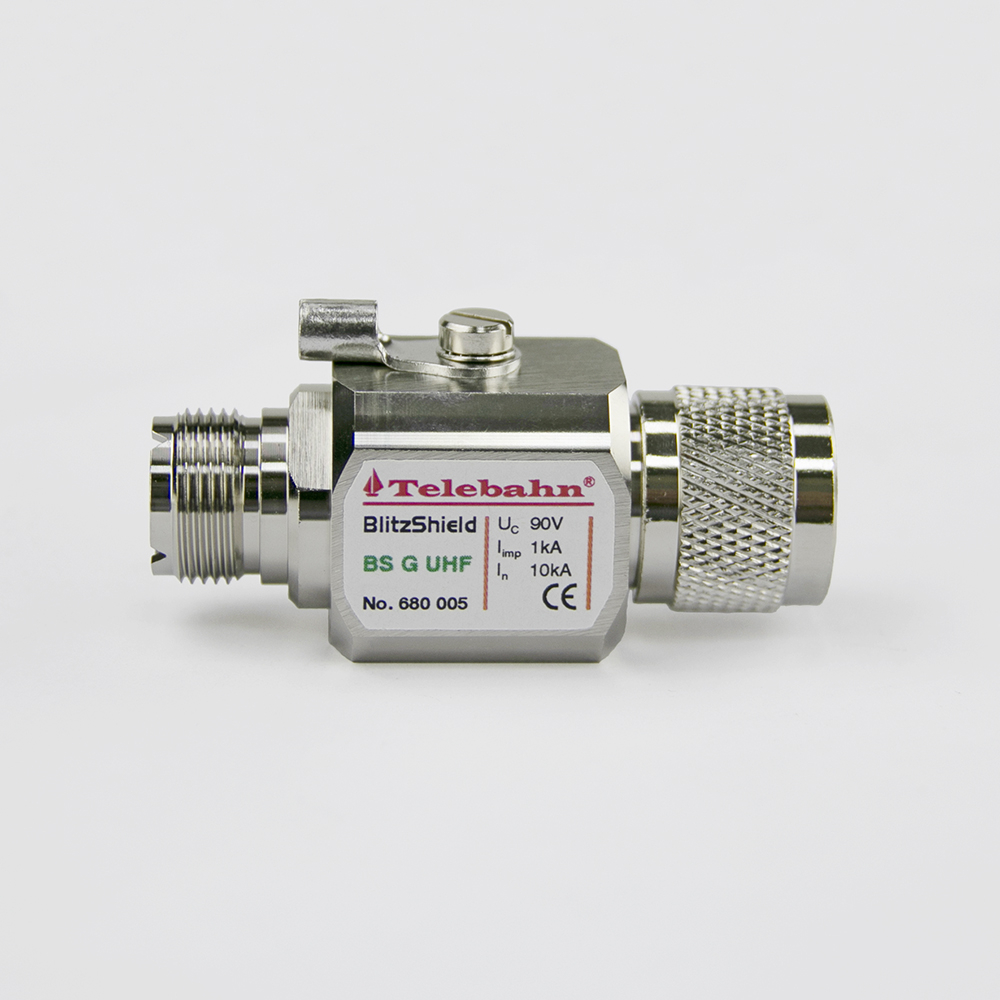

3 Image_BS G UHF.jpg



Installation Diagram

 BS G UHF.png
