Technical data
|
Type |
BS G NA |
|
Art.-No. |
680020 |
|
Rated voltage (max. continuous d.c. voltage) [Uc] |
90V |
|
System type |
50Ω Coaxial Cable(Antenna Feeder) System |
|
Connection input/output |
N (F-F) socket/socket |
|
Nominal current [ IL ] |
6A |
|
Lighting impulse current (10/350µs) |
1kA |
|
Nominal discharge current (8/20µs) [In] |
5kA |
|
Max. discharge current (8/20µs) [Imax] |
10kA |
|
Voltage protection level at In [ Up ] |
≤ 700V |
|
Transmission frequency [ fG ] |
0-6000MHz(0-6GHz) |
|
Max. output power [ P ] |
500W |
|
Insertion loss [ aE ] |
≤ 0.2dB |
|
Return loss [ aR ] |
≥ 20dB |
|
Characteristic impedance [ Z ] |
50Ω |
|
Warranty period |
3 Years |
|
Operating temperature range [ Tu ] |
-40°C...+80°C |
|
Earthing via |
CE (LVD, EMC); RoHS |
|
Type of remote signaling contact |
Outgoing connecting port |
|
Test standards |
IEC 61643-21; EN 61643-21; GB 18802.21 |
|
Enclosure material |
Stainless steel |
|
Waterproof protection |
IP65 |
|
Warranty |
3 Years |
Hightlight Features
1. With exchangeable integrated gas discharge tube.
2. High discharge capacity, low voltage protection level.
3. Up to 6GMHz frequency range, high performance transmission.
4. Metallic housing N connection, easy for installation.
5. For 50Ω Coaxial Cable(Antenna Feeder) System.
Summary

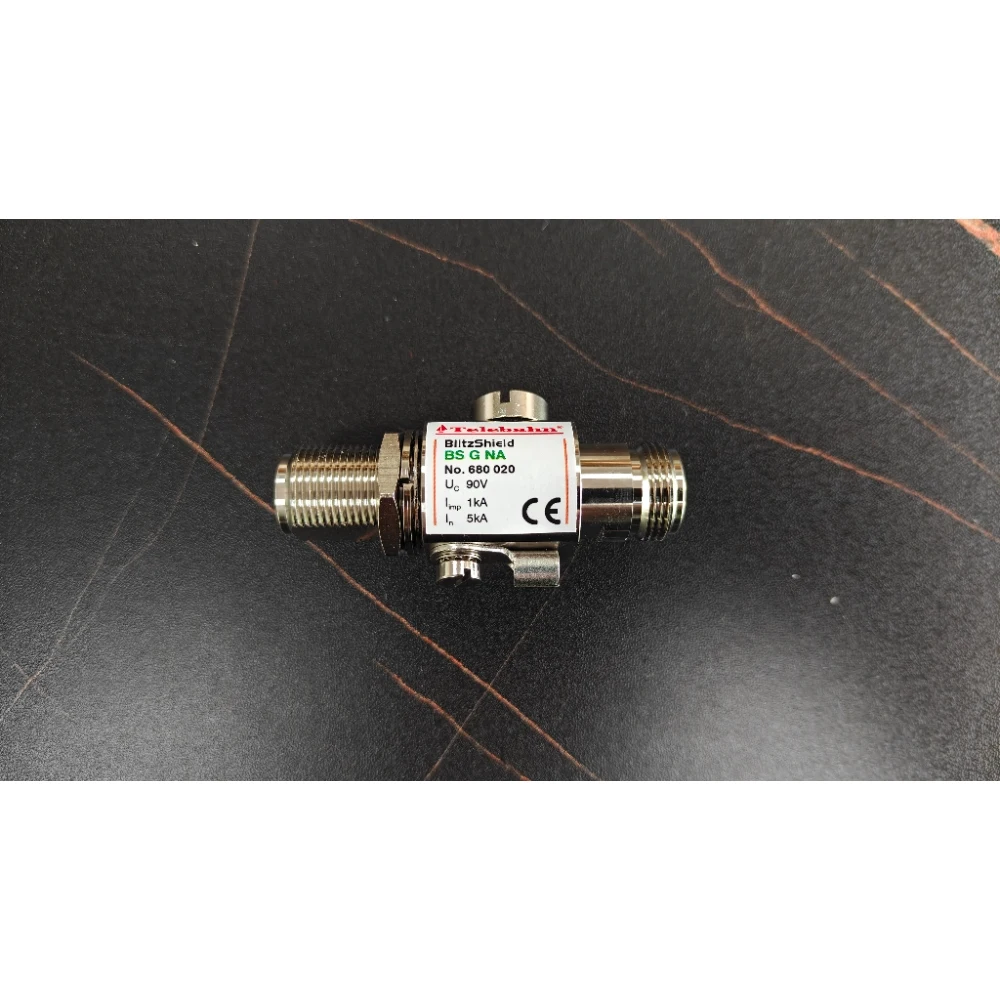

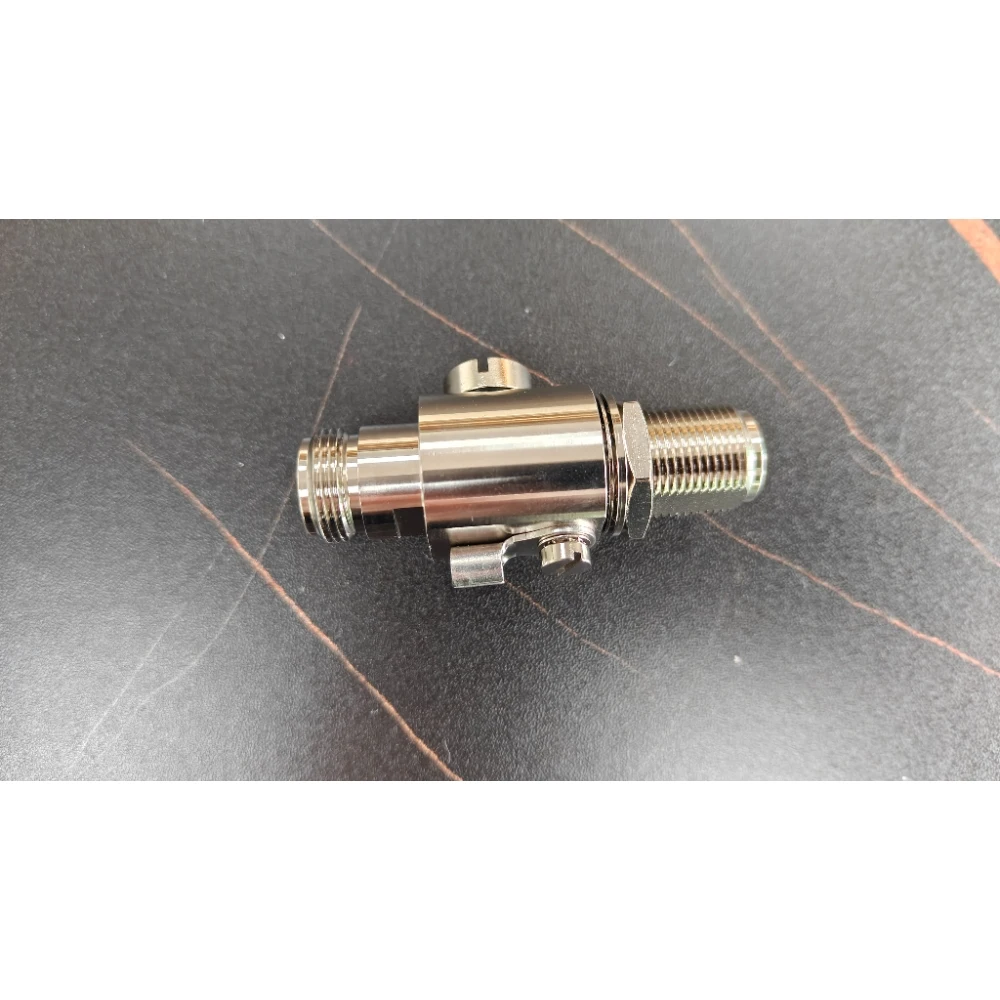

BS G NA(680020) is for installation at LPZ 0B-1 or higher, protecting 50Ω coaxial cable system, applied in coaxial cable system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.
