RF Antenna Feeder SPDs N Connector Male-Female 0-3GHz Coaxial Cable 50Ohm 90V/250V Surge Protector

Inquiry
  • Overview
  • Inquiry
  • Related Products

Telebahn



RF Antenna Feeder SPDs N Connector Male-Female 0-3GHz Coaxial Cable 50Ohm 90V/250V Surge Protector is a must-have for anyone who uses antennas. Whether you're in a rural or urban area, this product is designed to protect your equipment from lightning and surges to ensure long-lasting performance.


Created to manage a range that is wide of, rendering it appropriate for a variety of antennas. It offers a loss that is ultra-low ensuring the signals reach your equipment without any significant decrease in power. This makes it and solution is perfect anybody looking to improve their signal reception.


Why this stand out is the known undeniable fact that it's easy to install. The N connector male-female design means it to your current gear with ease that one can link. Additionally, it comes by having a cable is coaxial reducing the necessity for additional cables.


The item can also be durable, as a result of its top-quality construction that's made to withstand climate is harsh. Made from top-notch materials that will last. This system is built to manage all of it whether it's rain, snowfall, or extreme temperature.


In addition to its durability, built to protect your equipment from lightning and surges. The 90V/250V rise protector implies that you could have reassurance comprehending that your gear is protected from any surges which are sudden power.


For a high-quality surge protector that's easy to install and durable, then the Telebahn RF Antenna Feeder SPDs N Connector Male-Female 0-3GHz Coaxial Cable 50Ohm 90V/250V Surge Protector is an excellent choice.



Product Description



Summary

For installation at LPZ 0B-1 or higher, protecting 50Ohm coaxial cable system, applied in coaxial system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.

Highlight Features

With exchangeable integrated gas discharge tube.

•High discharge capacity, low voltage protection level.

Wide frequency range, high performance transmission.

Metallic housing N (M-F) connection, easy for installation.

Application

 BS N GC is applied in various feed system, and so on.

Application environment

Temperature: -40°C ~ +80°C

Relative humidity:  ≤ 95% (25°C)

Technical data

Type

BS N GC (M-F)

(Replacement gas discharge tube)

Rated voltage (max. continuous d.c. voltage) [Uc]

90V or  250V

Nominal current [ I]

3.5A

Lightning impulse current (10/350)  [ Iimp ]

1kA

Nominal discharge current (8/20)  [ In ]

10kA

Max. nominal discharge current (8/20)  [ Imax ]

20kA

Voltage protection level at In  [ Up ]

≤ 700V

Transmission frequency [ fG ]

0-3GHz

Max. output power  [ P ]

500W

Insertion loss [ aE ]

≤ 0.2dB

Return loss [ aR ]

≥ 18dB

Characteristic impedance  [ Z ]

50Ohm

Connection input/output

N (M-F) socket/plug

Operating temperature range [ Tu ]

-40°C...+80°C

Earthing via

Outgoing connecting port

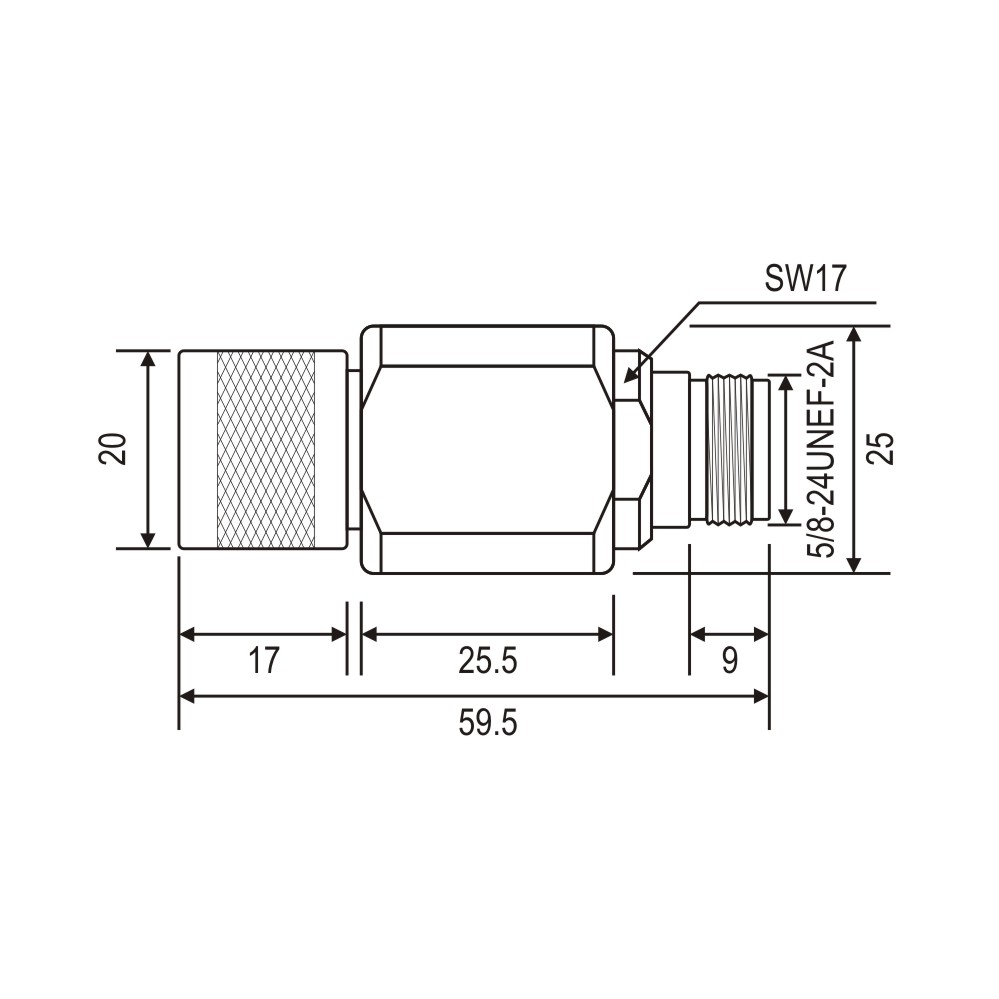

Dimension

25 x 25 59.5 (mm)

Test standards

IEC 61643-21; EN 61643-21; GB 18802.21

Certification

CE (LVD/EMC), Rohs

Ordering information

Type

BS N GC

Art.-No.

680 015

Packing unit

1pc(s)

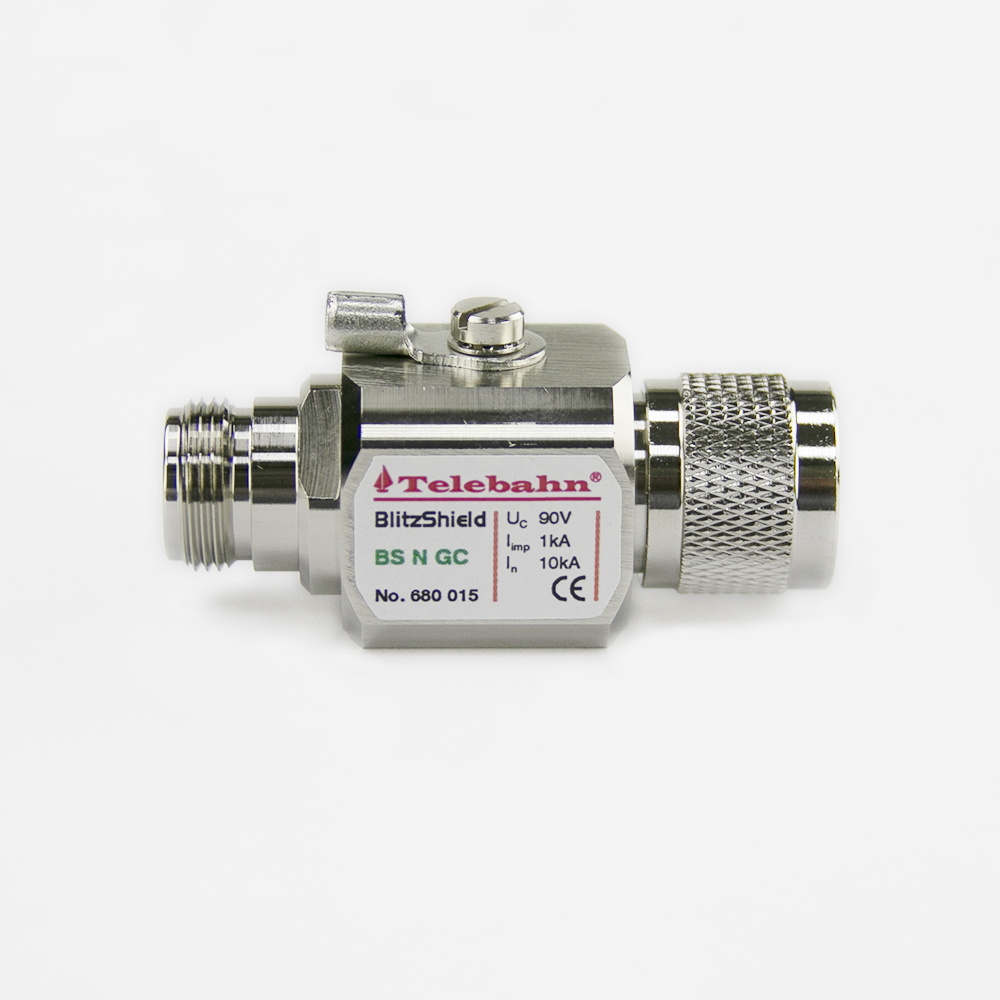

3 Image_BS N GC.jpgDimension_BS N GC.jpg

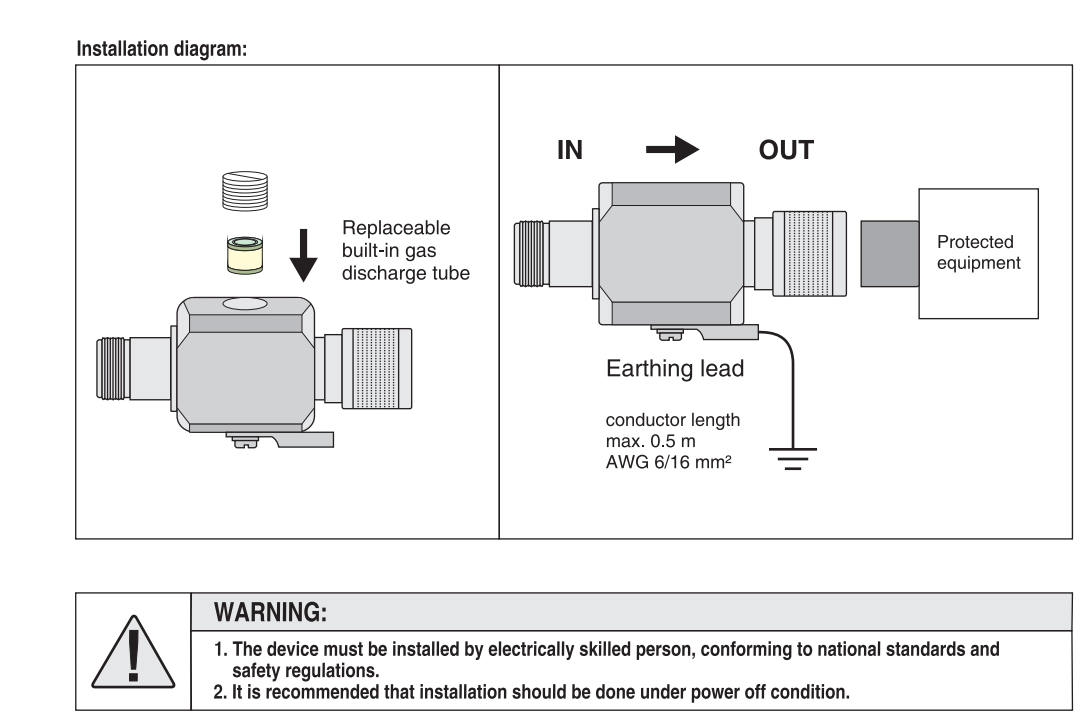

Installation Diagram

 BS N GC
