Technical Data
|
Type |
ISG 10 C50 |
|
Art.-No. |
690900 |
|
Rated DC withstand voltage[UW DC] |
200V |
|
Rated AC withstand voltage[UW AC] |
140V |
|
Lighting impulse current (max. withstand@10/350µs)[Iimp] |
50kA |
|
Nominal discharge current (max. withstand@8/20µs) [In] |
50kA |
|
Max. discharge current (max. withstand@8/20µs) [Imax] |
100kA |
|
Classification following lEC 62561-3 |
N |
|
Rated impulse sparkover voltage 1kV/µs[Ur Iimp] |
900V |
|
Operating temperature range [Tu] |
-40°C...+80°C |
|
Connection to network |
Wire (PS) / wire terminal (PC) |
|
Length |
255mm |
|
Earthing wire |
16mm2 |
|
Protection rating |
IP67 |
|
Material(connection) |
Copper |
|
Connection |
Rd 10 mm |
|
Connection material |
Steel / Cu |
|
Protection level |
IP67 |
|
Certification |
CE (LVD, EMC); RoHS |
|
Compliance |
EN 62561-3 |
|
Warranty |
3 Years |
Hightlight Features
1. lsolating spark gap.
2. For mounting in-door & out-doors.
3. Max. discharge current 100kA.
4. EN 62561-3 compliance.
Application Environment
Temperature: -40°C~ +80°C ,Relative humidity: ≤ 95% (25°C)
Summary

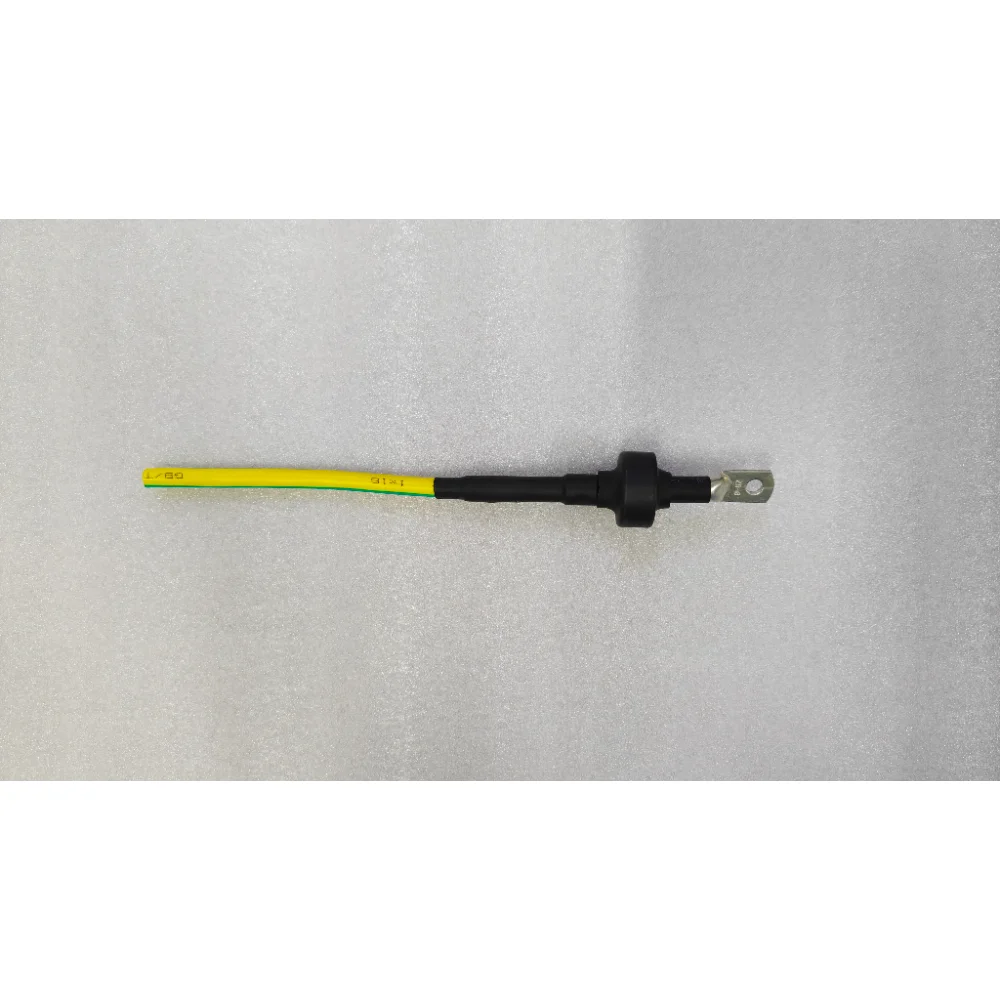

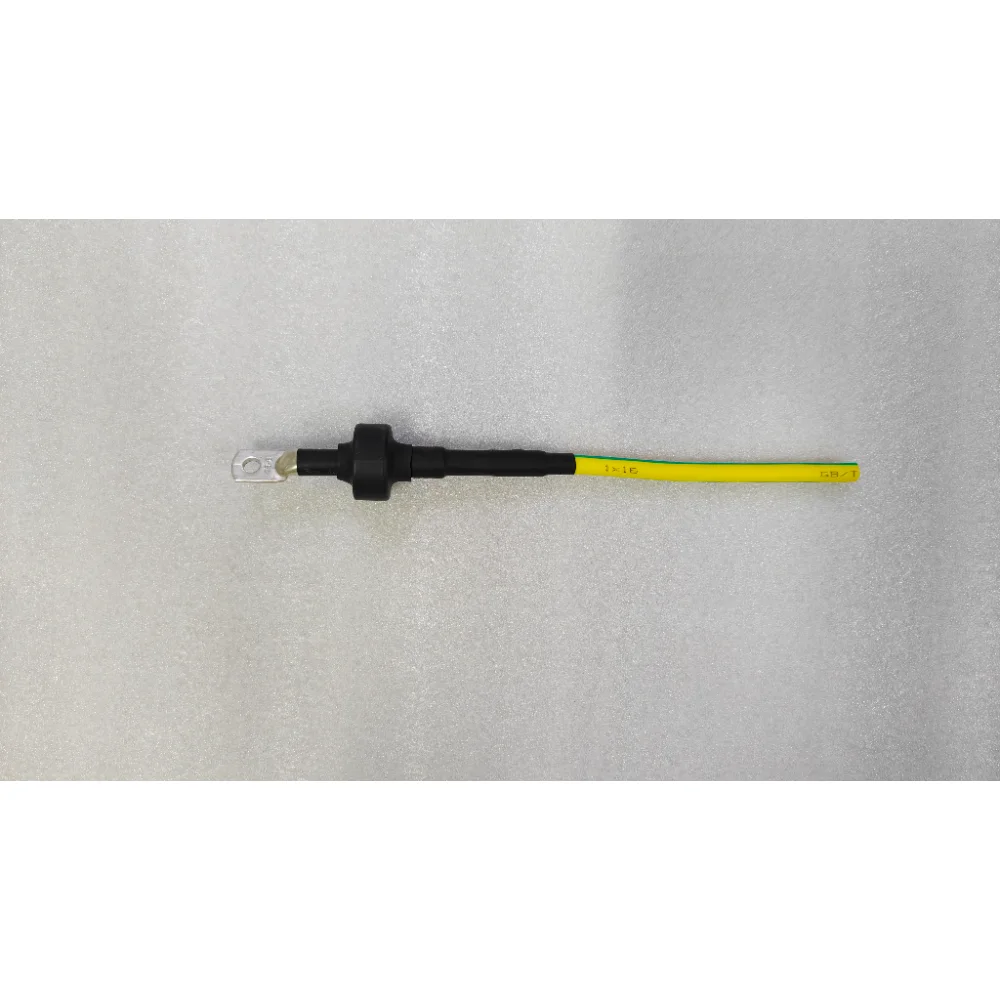

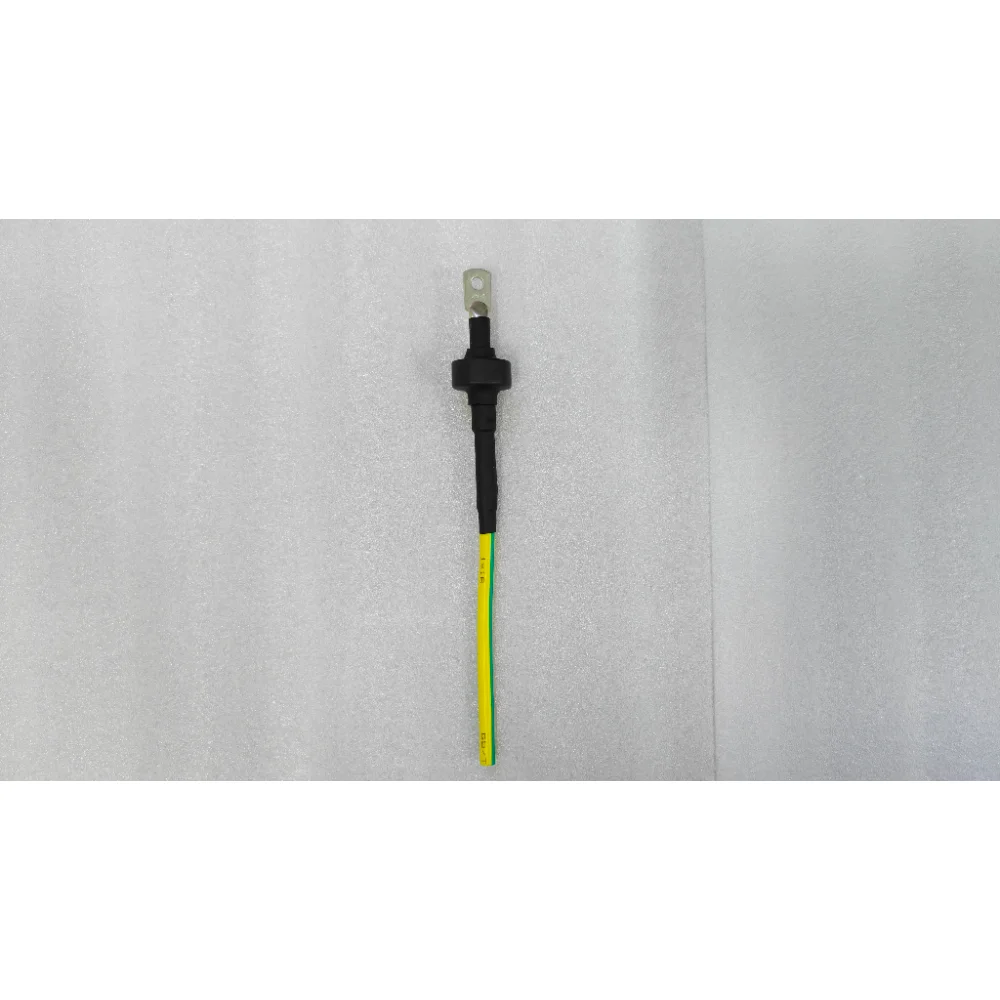

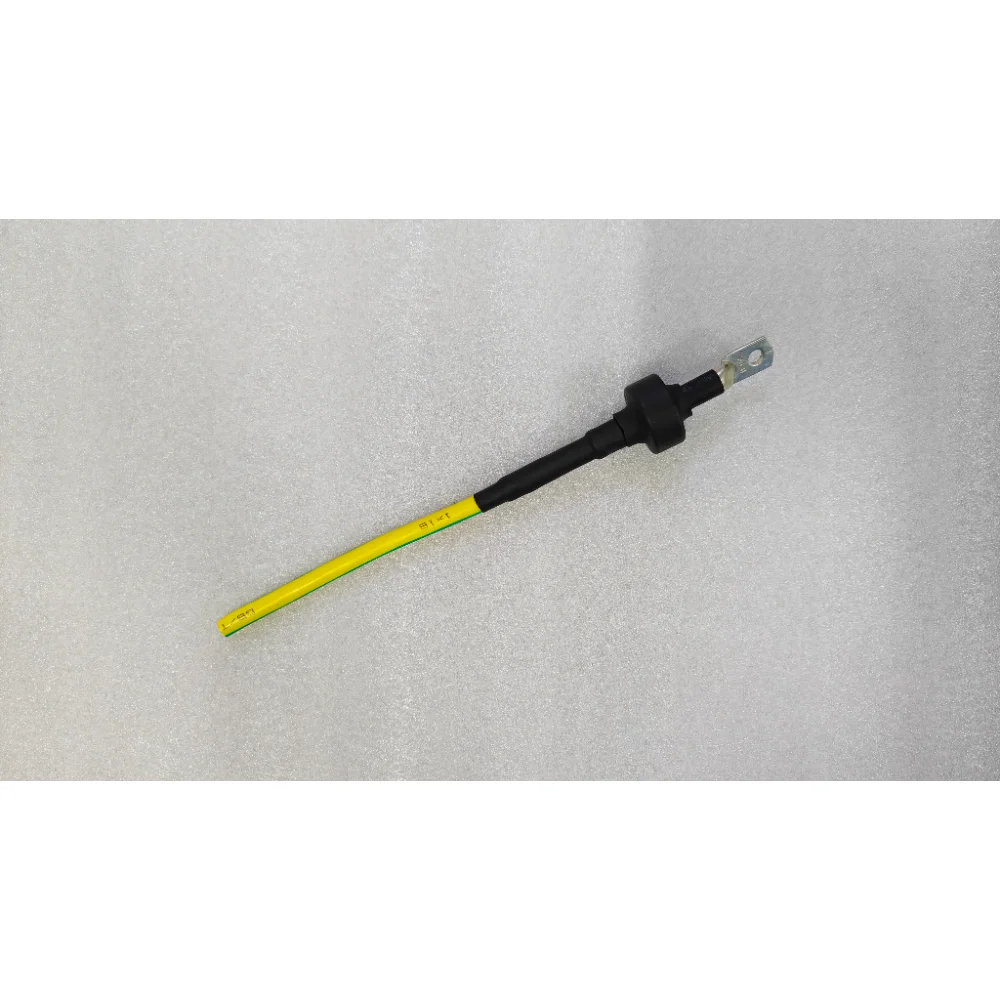

ISG 10 C50 is for lightning equipotential bonding, especially for connection of separated earthing systems.
Other
We have Lighting impulse current (10/350µs)[Iimp]:25kA,50kA,100kA and 200kA.
