Lightning Surge Counter 7 Digits 0-9999999 SPD OLED Impulse Counter

Product Description

Technical Data

Type	IC 05
Art.-No.	810405
Type of surge counter	OLED surge counter
Response behaviour of impulse current	>1kA,rise time:8-10μs
Sequence of impulse	>1s
LCD indicator	7 digits (0 ~ 9999999)
Inductive line	1m long twisted-pair
Power supply	3V battery, Type:CR123A,exchangeable
Service life of battery	> 2.5 years
Operating temperature range	-10°C..+50°C
Mounting on	35mm DIN rail, EN 60715
Enclosure material	Purple( or Black)thermoplastic , UL94-V0
Warranty	3 Years
Waterproof of protection	IP 20
Place of installation	Indoor
Certification	CE (LVD, EMC); RoHS;REACH

10-IC 05_SN

Hightlight Features
1. 2.2 standard module width.

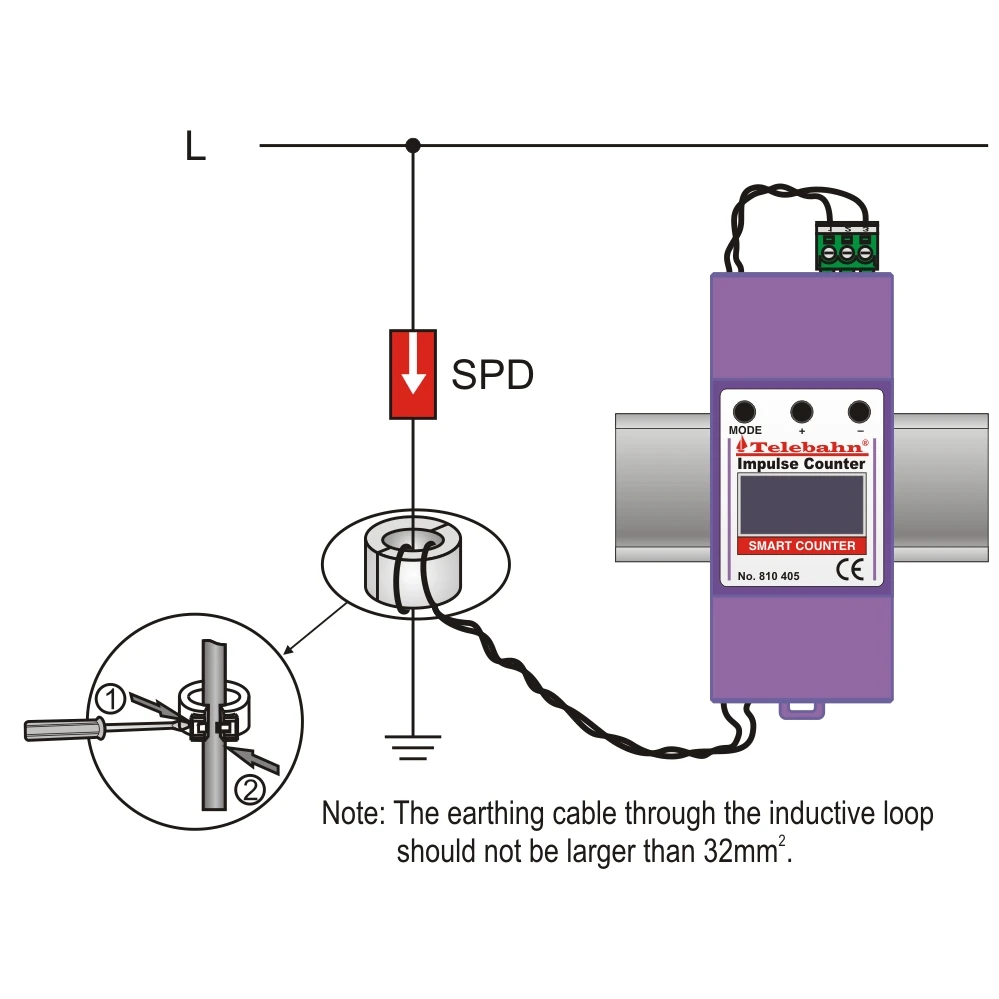

2. Inductive loop (feed through with the earthing line of surge protective devices).
3. 7 digits(0-9999999) OLED display, OLED surge counter.

4. Powered by replaceable 3V Lithium battery, 0.96 inches ,128*64 resolution OLED display.
5. 1m long inductive twisted pair.

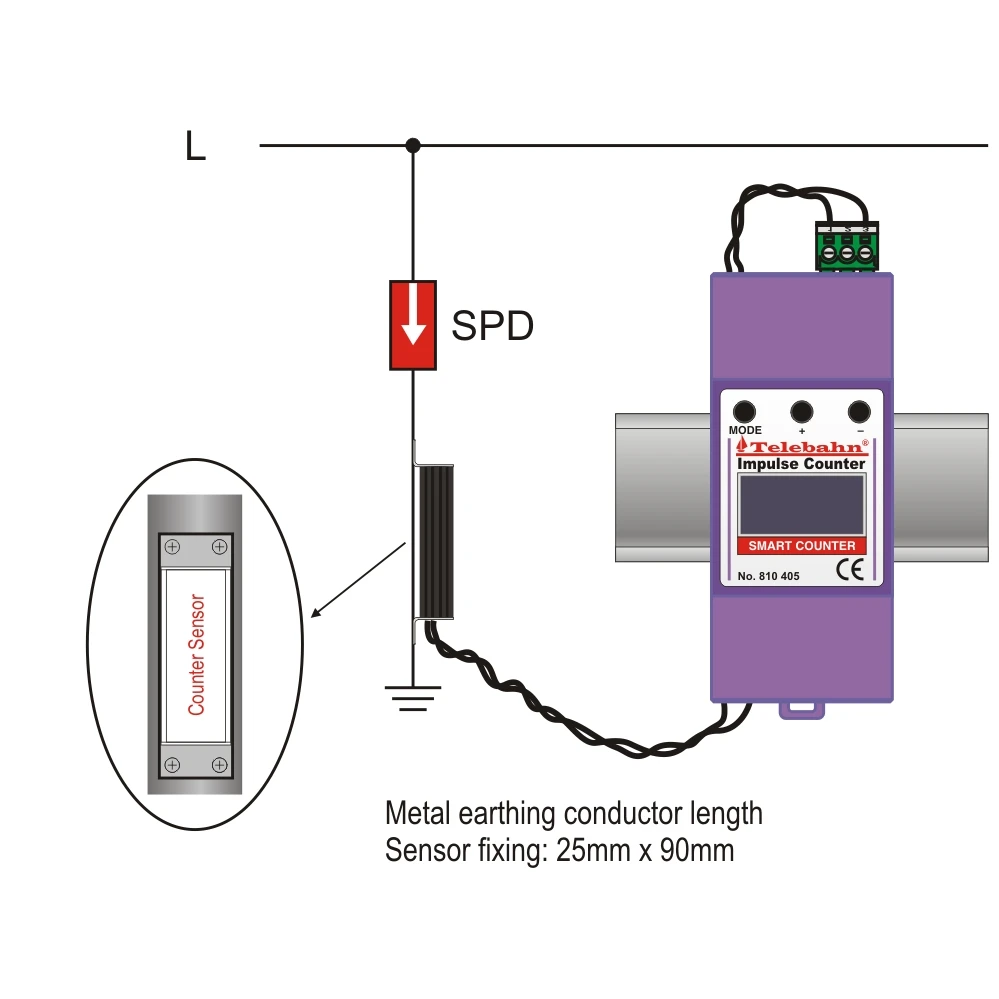

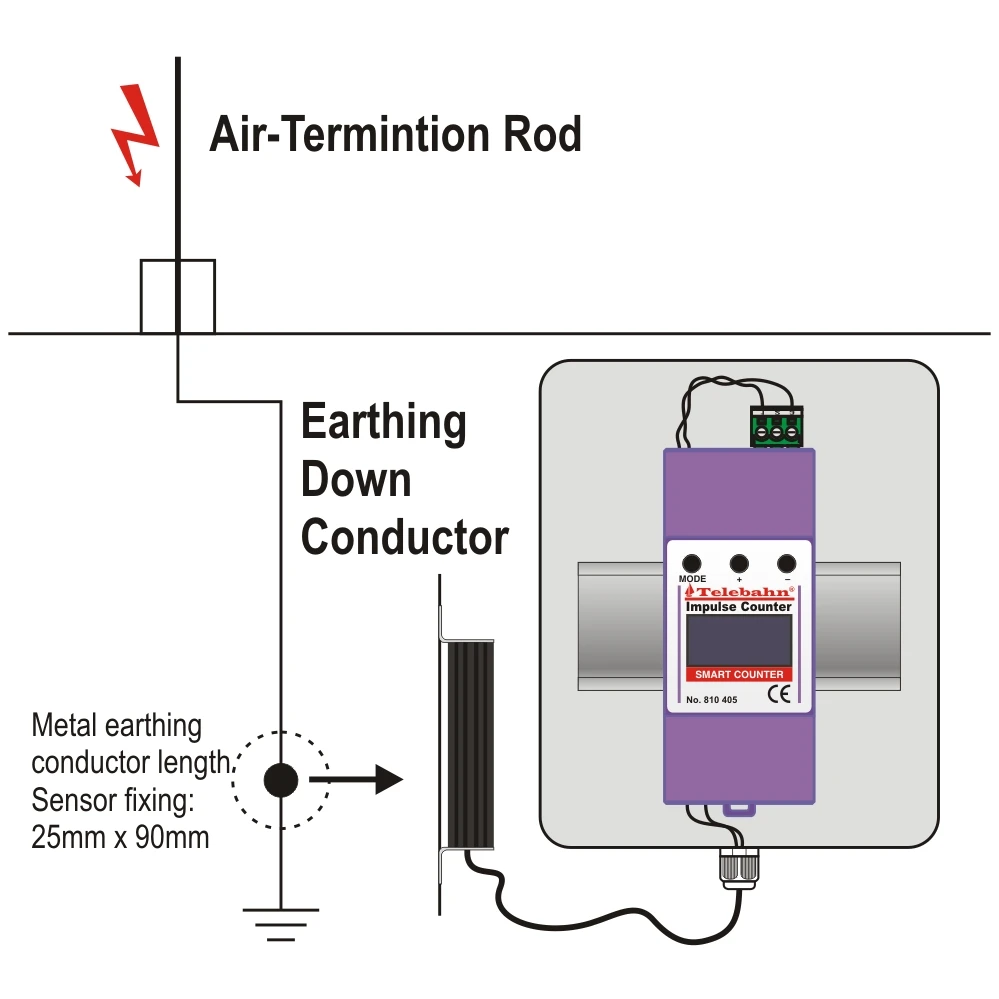

20-IC 05_SN_APPLIED.jpg 21-IC 05_SN_IP65.jpg 20-IC 05_APPLIED.jpg

Summary

Surge Counter IC 05(810405) is used for counting the times of current discharge by surge protective devices with with 7 digits(0-9999999), OLED display.
