Technical Data
|
Type |
BT PST10 4SF |
|
Art.-No. |
830642 |
|
According to IEC 61643-11/EN 61643-11 |
Class II + Class III / Type 2 + Type 3 |
|
Socket type |
UK |
|
Quantity of socket outlets |
4 sockets/ IP 44 cover |
|
System mode |
Power Strip with Surge Protector(Built-in filter) |
|
Nominal voltage a.c. [ UN ] |
250V |
|
Rated voltage (max. continuous a.c. voltage) [ Uc ] |
275V |
|
Nominal load current [ IL ] |
13A |
|
Nominal discharge current (8/20μs) [ In ] |
10kA |
|
Max. discharge current (8/20μs) [ Imax ] |
20kA |
|
Voltage protection level at In [ Up ] |
≤ 1.0kV |
|
Response time [tA] |
≤ 25ns(L-N) |
|
Response time [tA] |
≤ 100ns(L/N-PE) |
|
Max.back up fuse |
16A gL/gG |
|
Short-circuit withstand capability at max. back up fuse |
6kArms |
|
Operating state indication |
Green light |
|
Grounding state indication |
Red light |
|
Operating temperature range [Tu] |
-40°C...+80°C |
|
Mounting on |
Surge Protector for standard 19” distribution cabinet |
|
Connecting cable |
1mm2, length, 2000mm |
|
Connecting mode |
Standard UK plug/socket |
|
Terminal Protection |
Yes |
|
Housing |
Aluminum |
|
Test standards |
IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011 |
|
Certification |
CE; RoHS |
|
Warranty |
3 Years |
Hightlight Features
1. Provides Surge Protection, with combined technology of fast response of Metal Oxide Varistor (MOV), and High Discharge Capacity of Gas Discharge Tube (GDT).
2. Equipped with 4 sockets that could be modified according to your national standard plug/sockets.

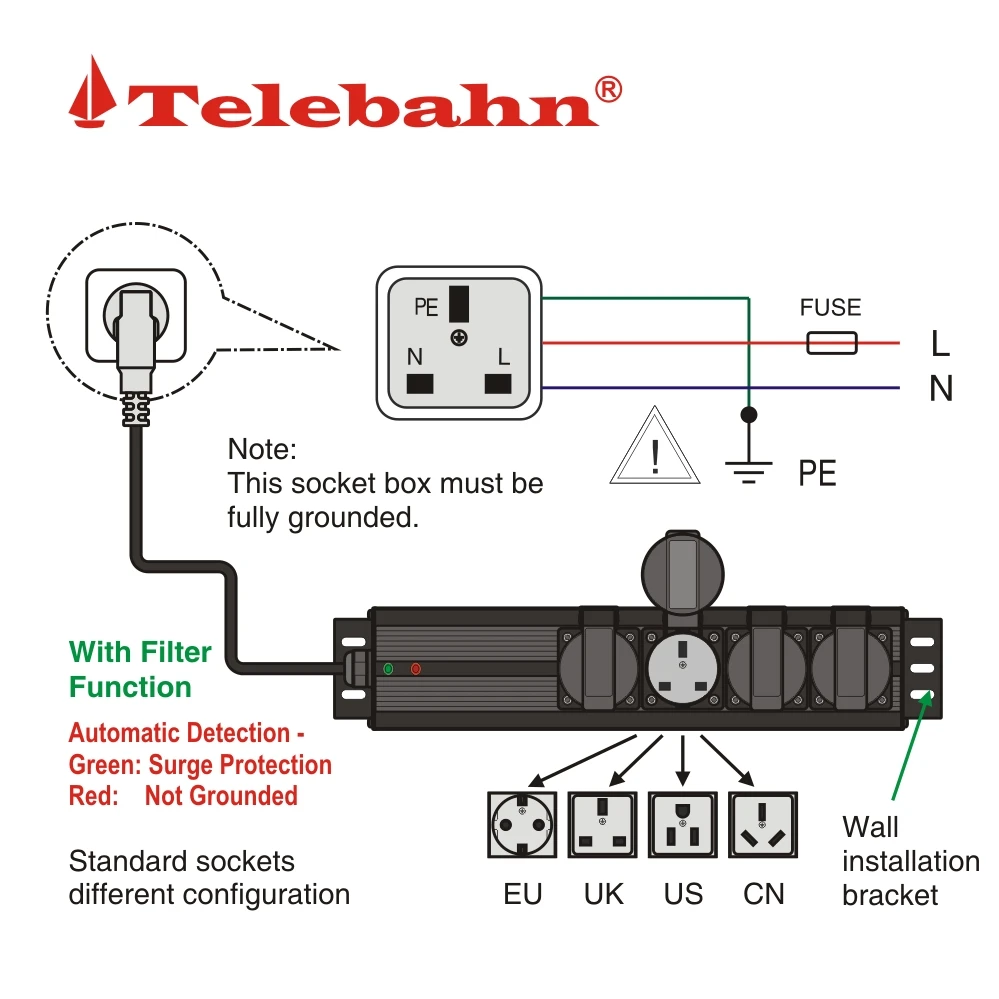

3. Two LED Indicators, Green LED for Surge Protection Status; Red LED for Grounding Connection Status.
4. Surge Protector for standard 19'' distribution cabinet(Built-in filter).
5. Suitable for use in single phase 13A 250V AC systems.
Other

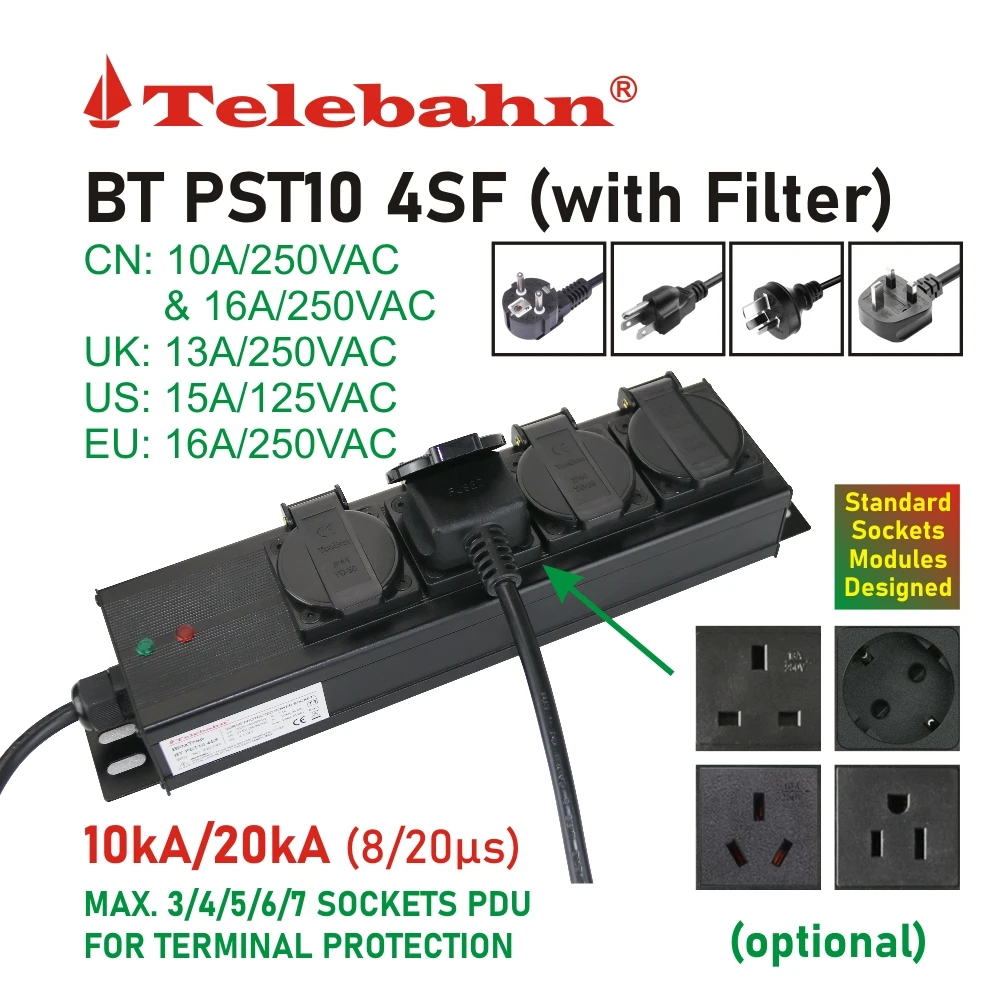

Selectable power strip with surge protector: US 15A/125V AC; UK 13A/250V AC; EU 16A/250V AC; CN 10A/250V AC, 16A/250V AC.
Summary

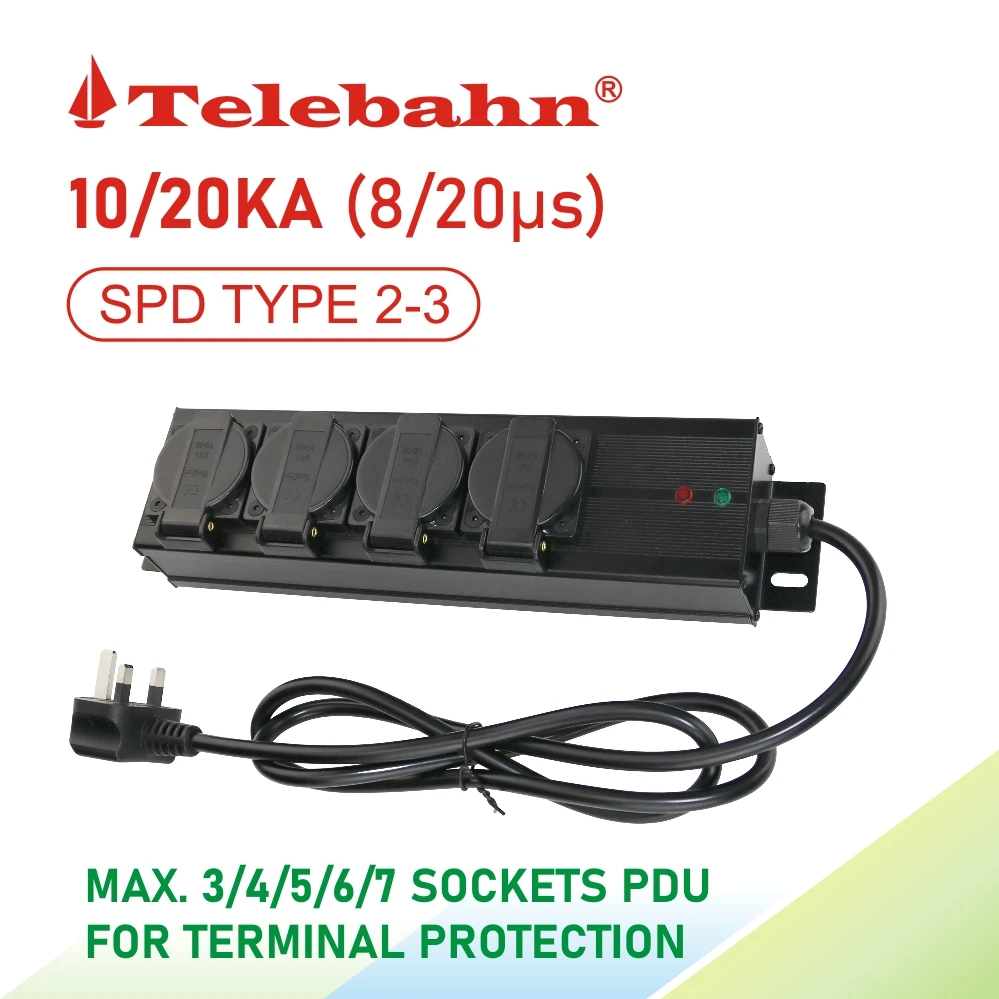

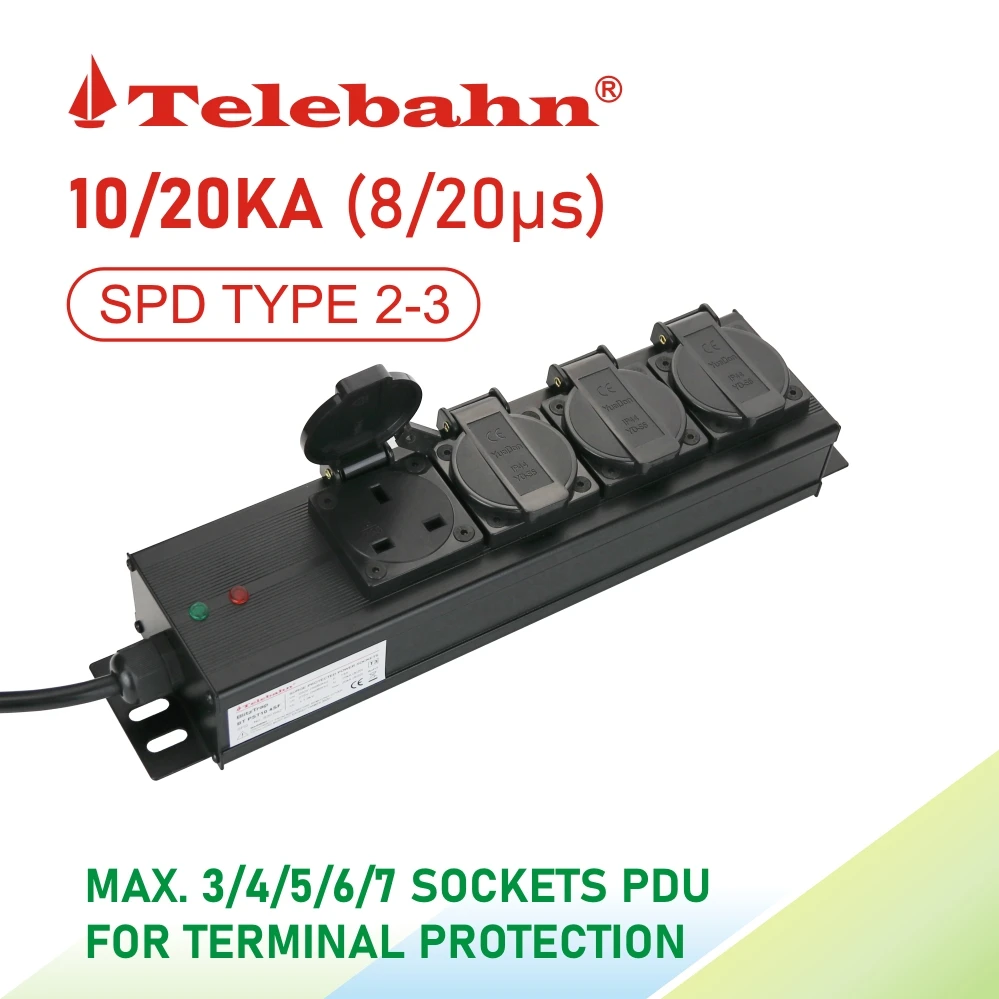

Surge Protector Power Strip BT PST10 4SF(with filter)is for protection of terminal electronic Equipment, with LED indicators for Surge Protection and Grounding connection status. Class C-D (Type 2-3) surge protection and lightning protection equipment. Designed according to IEC 61643-11:EN 61643-11: 2011; GB 18802.1-2011; EN 61643-11:2012.
